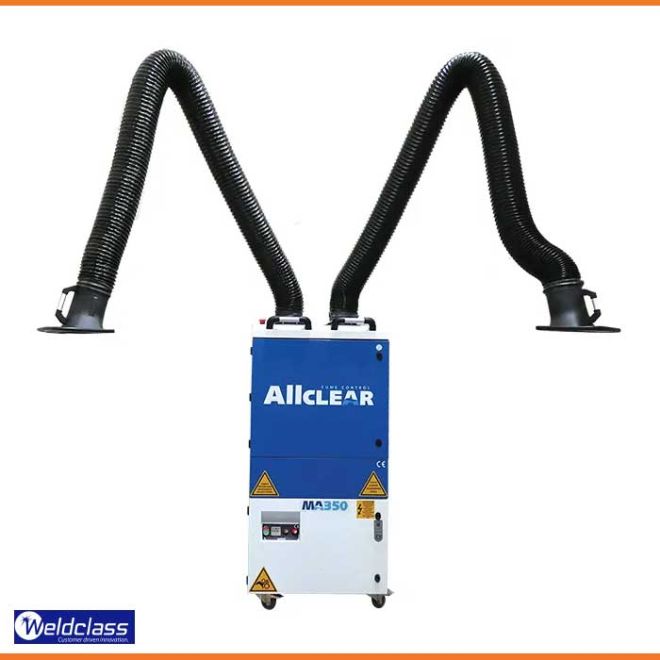

Weldclass ALLCLEAR MA350 AUTO Mobile Welding Fume Extractor with Twin 3m Arm
Product Code: MA350-AUTO (91350AMA3)
The ALLCLEAR® MA350 AUTO is a 415V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. With cleanable cartridge filter for extended filter life, the MA350 AUTO offers significantly lower operating costs vs traditional filters.
A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Equipped with twin 3-metre arms, working hour counter, filter fullness indicator, malfunction warning, and a unique dust collection bin. Mounted on casters for mobility, and operates off 3-phase 415V power supply.
For Bulky Freight: In Checkout you must Select ROAD FREIGHT - as other services listed can not accept bulkly items. OR CONTACT US TODAY on 1300 79 33 22 or by email sales@safepak.com.au to get a COMPETITIVE no obligations quote directly to your door!
Weldclass ALLCLEAR MA350 AUTO Mobile Welding Fume Extractor with Twin 3m Arm - Code: MA350-AUTO (91350AMA3)
Features:
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Automatic filter cleaning saves operator down-time (cleaning cycle activates when unit is switched off and/or if airflow drop is detected)
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
- ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) maintains better filter condition, and further extends filter life
- Large 28m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning etc) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- High extraction performance (max air flow: 3,500m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Patented dust collection system
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
Specifications:
- Power supply: 3-phase 415V
- Power plug required: 415V ≥10A, plug not included*
*Requires 415V plug, with amperage 10A or higher - Dimensions (mm): L720 x W785 x H1480
- Weight: ~200kg
- Motor size: 2.2kw
- Max air flow: 3,500m³ / hour
- Air flow at suction point: 1,600m³ / hour per arm
- Filter surface area: 28m² (2 x 14m²)
- Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
- Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
- Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
